SmartPT Sensor
Stevens’ Smart PT is a ceramic membrane pressure and temperature sensor that delivers accurate results for a wide range of fluid level measurement applications. In addition to simple instantaneous measurements, this smart sensor features the ability to capture peak crest levels, and to automatically sample and report basic statistics on a configurable time interval.
Stevens’ Smart PT is a ceramic membrane pressure and temperature sensor that delivers accurate results for a wide range of fluid level measurement applications. In addition to simple instantaneous measurements, this smart sensor features the ability to capture peak crest levels, and to automatically sample and report basic statistics on a configurable time interval.
Stevens’ Smart PT is a ceramic membrane pressure and temperature sensor that delivers accurate results for a wide range of fluid level measurement applications. In addition to simple instantaneous measurements, this smart sensor features the ability to capture peak crest levels, and to automatically sample and report basic statistics on a configurable time interval.
Versatile
A corrosion-resistant stainless steel housing and potted electronics make Smart PT extremely durable and long lasting for submersible water applications.
Smart PT is available with a vented or absolute pressure sensing module. Both versions come equipped with user specified length of cable. The vent tube provides an atmospheric reference which compensates for variations in barometric pressure.
In addition to programmable corrections for local variations in Earth’s gravitational field, Smart PT also compensates automatically for the water temperature-density dependency.
Every Smart PT provides digital SDI-12, RS-485 and Modbus RTU over RS-485. Compatible with existing power and data logging instruments, the sensor can easily be deployed for data collection at remote monitoring sites.
Features
< ± 0.1% full scale accuracy
Aluminum oxide ceramic membrane
Digital output (SDI-12 / RS485)
Depth scales available from 2 meters (6.6 feet) up to 200 meters (660 feet)
Rugged housing and fully potted electronics – no risk of leaking
Compact size
Not damaged by freezing water
Vented or non-vented cable, user specified length
Direct pipe connection option
Low power consumption
Lightning protection
Overpressure tolerant
Unique Abilities
Average and standard deviation outputs on up to 3600 autosampled data points over configurable time window. Data is stored until requested using the M2 command.
Crest gauge function automatically captures minimum and maximum level and number of seconds since the event.
Smart autosampling can provide smoothing and oversampling.
Custom offsets.
Environmental corrections for local gravitational field and changes in fluid density due to temperature.

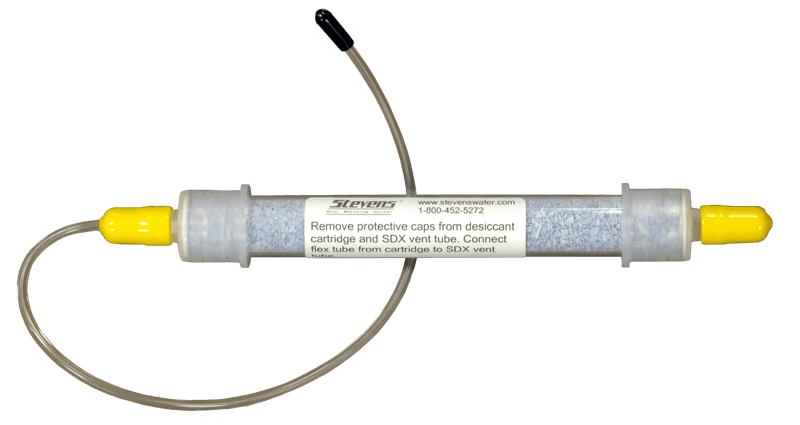

Optional Desiccant Cartridge
The SDX is a “Wet-Wet” device. While it is important to keep the SDX cable’s vent tube unobstructed for barometric pressure compensation, neither the pressure transducer nor internal electronics are damaged by condensation or moisture entering the vent tube. For best results, Stevens recommends the desiccant cartridge with vent tube adapter.
